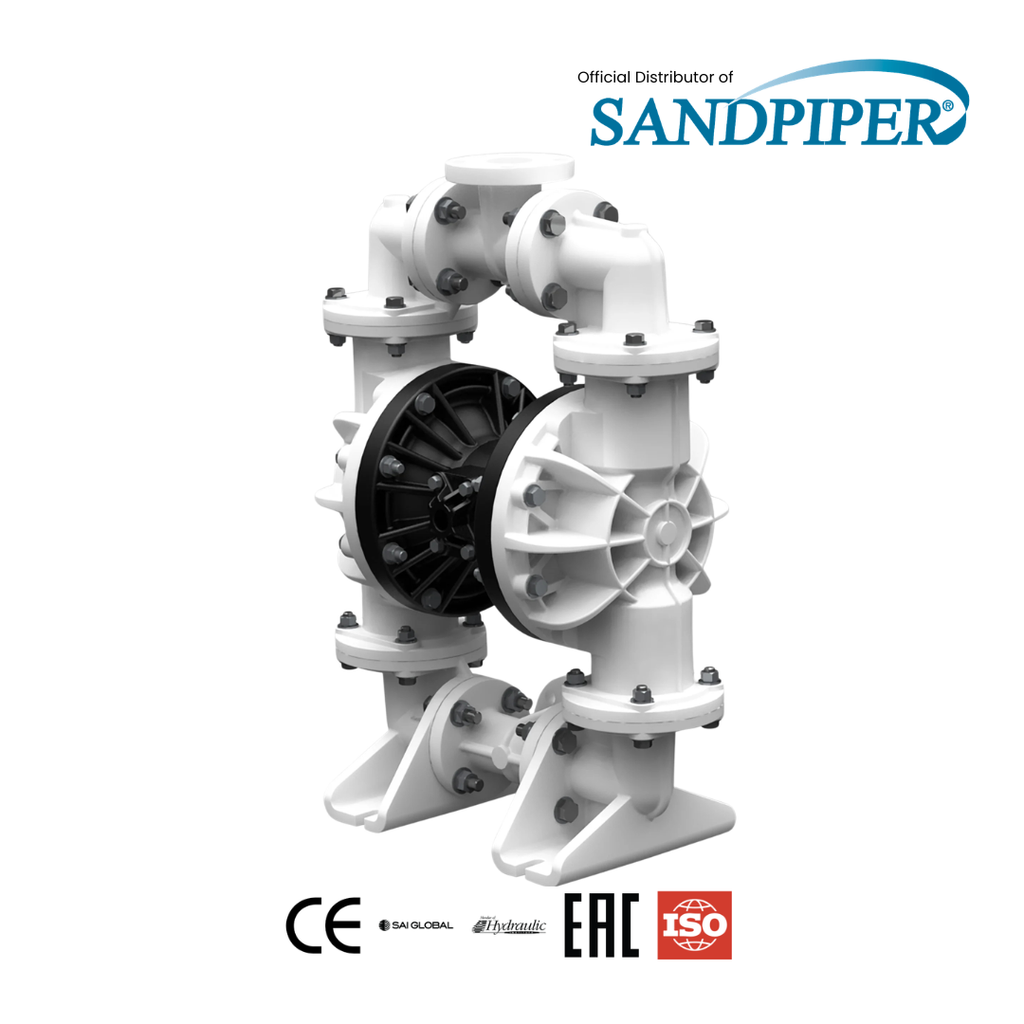

The SANDPIPER S20 2" (50mm) PVDF Containment-Duty Ball Valve AODD Pump is engineered for hazardous, corrosive, and environmentally sensitive fluid transfer applications where leak containment is critical. Built with PVDF wetted construction and Sandpiper’s containment-duty design, this air operated double diaphragm pump helps protect operators, equipment, and the surrounding environment by containing fluid in the event of diaphragm failure.
With a 2-inch universal ANSI / DIN flange port connection, high chemical resistance, and a maximum flow rate of up to 606 LPM (160 GPM), the S20 PVDF containment-duty pump is suitable for aggressive chemical transfer, acid handling, process chemical circulation, wastewater treatment, and industrial fluid handling applications.
PVDF provides excellent resistance to many corrosive chemicals, making this pump a strong choice for chemical processing environments that require dependable containment, long service life, and safe handling of difficult fluids.
Key Benefits
Containment-duty design for enhanced leak protection
PVDF construction for strong chemical resistance
High flow capacity up to 606 LPM (160 GPM)
Suitable for corrosive and hazardous fluid transfer
Air-operated design with no electricity required
Self-priming and run dry capable operation
Ideal For
Chemical Transfer
Acid Handling
Corrosive Process Fluids
Wastewater Treatment
Hazardous Fluid Containment
Leak Containment
Containment-duty construction helps protect people, equipment, and the environment.
PVDF Chemical Resistance
PVDF wetted parts support corrosive and aggressive chemical handling.
High Flow Transfer
Designed for efficient 2-inch industrial fluid transfer applications.
Safe Operation
Compressed air operation is suitable for demanding industrial environments.
Common Industrial Applications
Corrosive chemical transfer
Acid and caustic handling
Hazardous fluid containment
Chemical processing systems
Wastewater treatment chemical transfer
Industrial process fluid circulation
Tank unloading operations
Environmental protection applications
Technical Specifications
Pump Model
Sandpiper S20
Wetted Material
PVDF
Valve Type
Ball Valve
Port Size
2” Universal ANSI / DIN Flange
Maximum Flow Rate
Up to 606 LPM (160 GPM)
Maximum Pressure
Up to 7 Bar (100 PSI)
Solids Handling
Up to 17 mm (.66”)
Displacement Per Stroke
3.41 L (0.9 gal)
Self Priming
Yes
Run Dry Capability
Yes
Pump Type
Containment-Duty Air Operated Double Diaphragm Pump
Frequently Asked Questions
Why choose a containment-duty AODD pump?
A containment-duty AODD pump provides additional protection by helping contain pumped fluid in the event of diaphragm failure, making it suitable for hazardous, corrosive, or environmentally sensitive applications.
What is PVDF suitable for?
PVDF is suitable for many corrosive chemical applications and is often selected for aggressive fluids that require strong chemical resistance.
Can the Sandpiper S20 PVDF containment-duty pump run dry?
Yes. The pump is designed for run dry operation, helping reduce the risk of damage during intermittent or variable flow conditions.
Our engineering team can help you select the correct S20 containment-duty AODD pump, diaphragm material, and configuration based on your chemical compatibility, fluid properties, temperature, and operating conditions.
