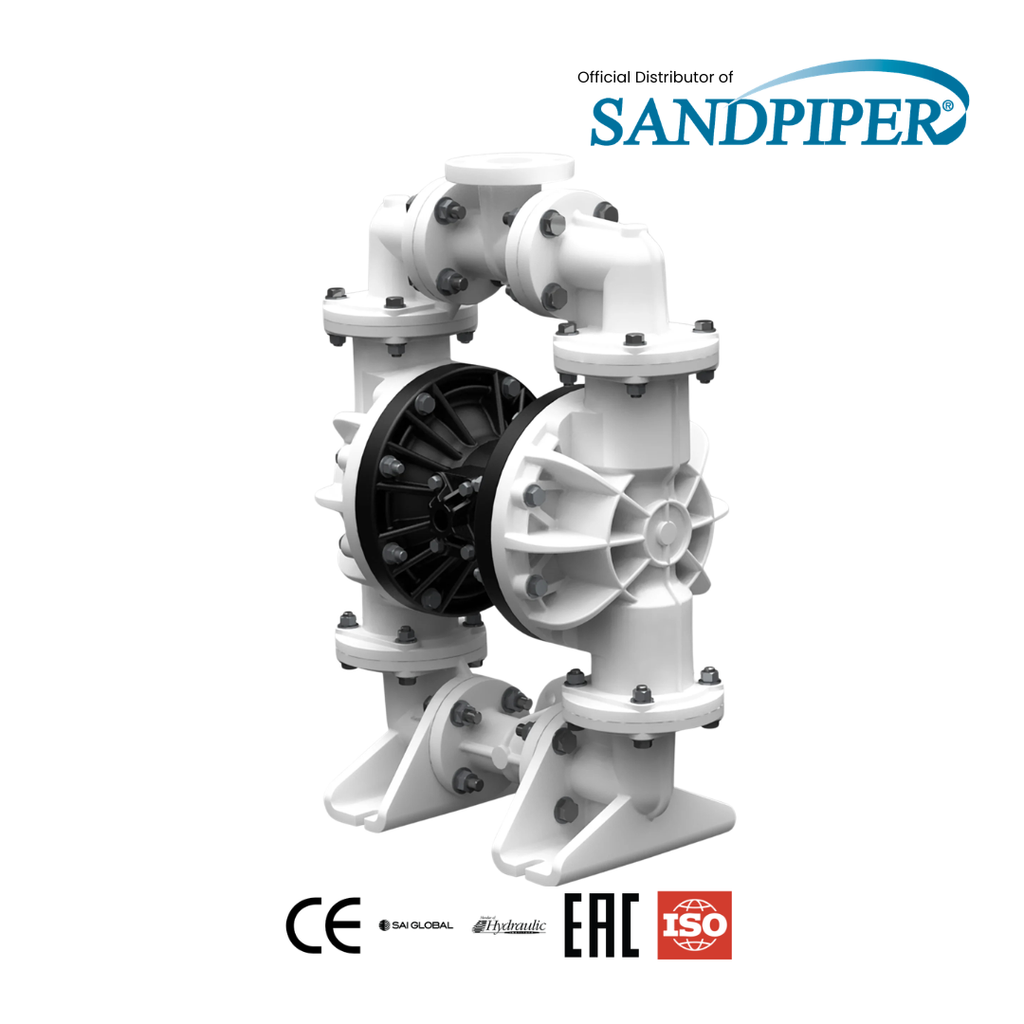

The Sandpiper S20 2” Polypropylene Containment-Duty Ball Valve AODD Pump is a non-metallic air operated double diaphragm pump designed for chemical transfer, bulk transfer, and a wide variety of process applications. Built with corrosion-resistant polypropylene construction, this pump is suitable for handling aggressive fluids where chemical compatibility, durability, and reliable transfer performance are important.
The S20 features a rugged, time-tested design with three-piece bolted manifolds that allow the porting connections to be reoriented to suit different process requirements. Its 2” universal flange connection fits both ANSI and DIN flange standards, making it flexible for industrial installation.
Designed with Sandpiper’s ESADS+ air distribution system, the S20 allows access to the complete air distribution system without removing the pump from service. This helps simplify maintenance, reduce downtime, and support long-term reliability in demanding chemical transfer applications.
Key Benefits
Corrosion-resistant polypropylene construction
High flow capacity up to 605 LPM (160 GPM)
2” universal flange fits ANSI and DIN flange standards
Externally serviceable ESADS+ air distribution system
Three-piece bolted manifolds allow port reorientation
Suitable for chemical transfer, bulk transfer, and process applications
Ideal For
Chemical Transfer
Bulk Fluid Transfer
Corrosive Fluid Handling
Process Applications
Industrial Chemical Processing
Corrosion Resistant
Polypropylene construction supports chemical transfer and corrosive fluid handling applications.
Flexible Installation
Three-piece bolted manifolds allow porting connections to be reoriented for process needs.
Reduced Downtime
Externally serviceable ESADS+ air system helps simplify maintenance access.
Reliable Transfer
Designed for chemical transfer, bulk transfer, and demanding process applications.
Common Industrial Applications
Chemical transfer
Bulk fluid transfer
Corrosive liquid handling
Industrial process pumping
Chemical manufacturing systems
Tank transfer operations
Process fluid circulation
General non-metallic AODD pump applications
Technical Specifications
Pump Model
Sandpiper S20
Pump Type
Air Operated Double Diaphragm (AODD) Pump
Wetted Material
Polypropylene
Valve Type
Ball Valve
Port Size
2” Universal Flange, fits ANSI & DIN Flange
Maximum Flow Rate
Up to 605 LPM (160 GPM)
Maximum Operating Pressure
Up to 7 Bar (100 PSI)
Solids Handling
Up to 17 mm (.66”)
Displacement Per Stroke
1.73 L (0.46 gal)
Shipping Weight
43 kg (95 lbs)
Air Distribution System
ESADS+ No-Lube, No-Stall Design
Frequently Asked Questions
What is the Sandpiper S20 Polypropylene AODD Pump used for?
The S20 is used for chemical transfer, bulk transfer, and process applications that require a corrosion-resistant non-metallic AODD pump.
What materials are available for the S20 non-metallic pump?
The Sandpiper S20 non-metallic pump is available in corrosion-resistant polypropylene, PVDF, and conductive polypropylene configurations.
What makes the S20 easier to maintain?
The S20 uses Sandpiper’s ESADS+ air distribution system, which allows access to the complete air distribution system without removing the pump from service.
Need Help Selecting the Right Non-Metallic AODD Pump?
Our engineering team can help you select the correct Sandpiper S20 configuration, diaphragm material, and pump setup based on your chemical compatibility, flow rate, and operating conditions.
